The 7 Types of Air Compressors and Their Applications
Air compressors are versatile machines used across various industries for a wide range of applications. They work by converting power into potential energy stored in pressurized air, which is then used to power tools, machinery, and even entire systems.
Air compressors are versatile machines used across various industries for a wide range of applications. They work by converting power into potential energy stored in pressurized air, which is then used to power tools, machinery, and even entire systems. There are several different types of air compressors, each suited to specific tasks depending on their design, power output, and efficiency. In this article, we’ll explore the seven main types of air compressors and their typical applications.

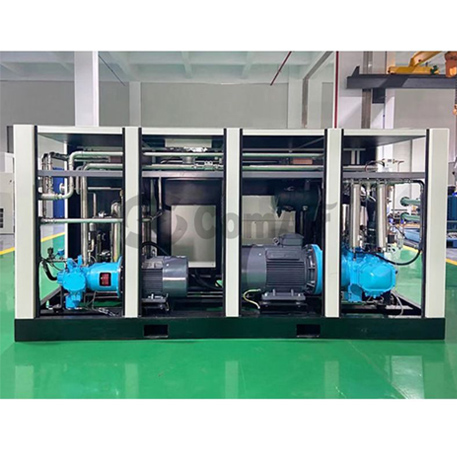

High Pressure Oil Free Screw Air Compressor
1. Reciprocating (Piston) Air Compressors
Reciprocating air compressors use a piston-driven mechanism to compress air. These compressors are some of the most common and widely used types of compressors, especially in applications where high pressure is needed. They function similarly to the internal combustion engine, with a piston moving within a cylinder to compress air as it moves up and down.
Key Characteristics:
Pressure Range: Typically ranges from 100 psi to 250 psi, but higher pressures can be achieved with multiple stages.
Power: Generally powered by either electric or gasoline engines.
Operation: Available in both single-stage and two-stage designs. In a single-stage compressor, air is compressed once, while in a two-stage compressor, air is compressed twice for higher pressure.
Applications:
Automotive Services: Often used in car repair shops for powering pneumatic tools like wrenches, sanders, and sprayers.
Manufacturing: Commonly used in small to medium-sized industries for powering tools and machines.
Home Use: Perfect for small workshops, DIY enthusiasts, or for tasks like inflating tires, powering small tools, or spraying paint.
2. Rotary Screw Air Compressors
Rotary screw compressors use two interlocking helical rotors to trap and compress air. The air is drawn in, trapped between the rotors, and then compressed as the rotors turn. This design allows for continuous air output without the pulsations associated with piston compressors.
Key Characteristics:
Continuous Air Supply: Provides a steady, continuous airflow.
Pressure Range: Typically ranges from 100 psi to 175 psi.
Efficiency: More energy-efficient than reciprocating compressors, especially at higher output levels.
Applications:
Industrial Applications: Widely used in large-scale industrial applications such as in manufacturing plants, food processing, and petrochemical industries.
Construction: Often used in large construction projects where tools need to run continuously.
HVAC Systems: Used to provide compressed air in heating, ventilation, and air conditioning systems.
3. Centrifugal Air Compressors
Centrifugal compressors are dynamic compressors that use high-speed rotating impellers to add velocity to the air, which is then converted into pressure. These compressors use a continuous flow of air and are often employed in high-volume, low-pressure applications.

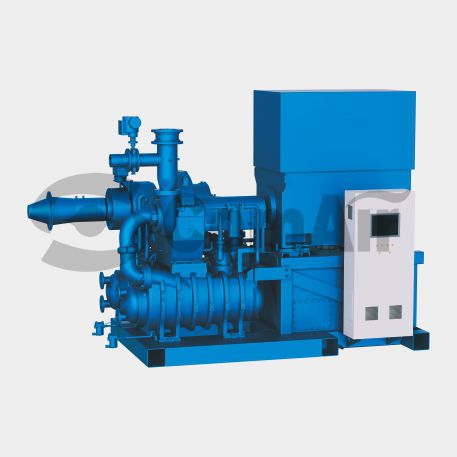

Centrifugal Air Compressor
Key Characteristics:
High Volume, Low Pressure: Ideal for applications requiring large volumes of compressed air at lower pressures.
Design: The impeller creates a radial airflow, which is directed into the diffuser and converted into pressure.
Operation: These compressors are often multistage for higher efficiency and pressure.
Applications:
Large-Scale Industrial Applications: Common in power plants, oil refineries, and other large facilities where high airflow is needed.
Air Handling Systems: Used in systems that require a continuous supply of air, such as in large pneumatic systems or for running industrial machines in large factories.
4. Diaphragm Air Compressors
Diaphragm compressors use a diaphragm, typically made of a flexible material like rubber or plastic, which moves up and down to compress air. These compressors are ideal for applications where oil-free, clean air is necessary, as they do not require lubrication for operation.
Key Characteristics:
Oil-Free Operation: Diaphragm compressors do not require lubrication, making them ideal for applications that require contaminant-free air.
Pressure Range: Typically used for pressures in the range of 30 psi to 200 psi.
Compact Design: These compressors are often smaller and more portable than other types.
Applications:
Medical and Laboratory Use: Commonly used in medical applications such as oxygen concentrators, and in laboratory environments where oil-free air is critical.
Food and Beverage: Used in applications where air purity is important, such as in packaging and bottling plants.
Pneumatic Tools: Ideal for low to medium-duty tools that require clean, dry air.
5. Scroll Air Compressors
Scroll air compressors work by using two interleaving spiral-shaped scrolls to compress air. One of the scrolls is stationary, while the other orbits around it, drawing in and compressing the air. These compressors are quieter and more efficient than piston-type compressors.
Oil Free Scroll Air Compressor
Key Characteristics:
Low Noise: Known for their quiet operation due to the smooth, continuous compression process.
Energy-Efficient: They use less energy compared to reciprocating compressors for the same air output.
Compact Design: They are compact and have fewer moving parts, reducing the likelihood of wear and tear.
Applications:
HVAC Systems: Often used in air conditioning and refrigeration systems due to their smooth, quiet operation.
Medical and Dental Equipment: Employed in medical applications like dental tools or breathing equipment where quiet and reliable performance is crucial.
Laboratory Equipment: Suitable for use in clean environments where vibration and noise must be minimized.
6. Vane Air Compressors
Vane compressors use a rotating vane inside a cylinder to compress air. As the vane moves, air is trapped and compressed, creating a smooth and steady airflow. These compressors are often used in smaller, lighter applications due to their compact size.
Key Characteristics:
Moderate Efficiency: Not as efficient as screw or centrifugal compressors, but still effective for medium-duty applications.
Smooth Airflow: Vane compressors offer a steady, pulsation-free airflow, similar to rotary screw compressors.
Pressure Range: Typically used in applications requiring medium pressure, ranging from 50 psi to 150 psi.
Applications:
Industrial and Automotive: Often used in automotive and manufacturing industries to power pneumatic tools and machinery.
Packaging and Processing: Vane compressors are used in some packaging lines or food processing systems that require compressed air.
Power Tools: Frequently used in applications involving moderate power tools, like drills and grinders.
7. Portable Air Compressors
Portable air compressors are smaller, mobile units designed for use in various fieldwork or temporary work environments. They come in various designs, but most often use reciprocating or rotary screw technologies to provide a portable source of compressed air.
Electric Portable Air Compressor
Key Characteristics:
Portability: Designed to be easily moved from one location to another, often mounted on wheels or trailers.
Pressure Range: Typically ranges from 90 psi to 200 psi, depending on the model and application.
Power Source: Can be powered by electricity, gasoline, or diesel, depending on the need for portability and mobility.
Applications:
Construction Sites: Used for powering tools like jackhammers, air compressors, and pneumatic drills.
Outdoor and Remote Work: Perfect for outdoor tasks, such as inflating tires, cleaning machinery, or providing air to tools in remote locations.
Landscaping: Often used for outdoor power tools and inflating equipment like lawnmowers, tractors, and air sprayers.
Conclusion
Each type of air compressor is suited to specific tasks and industries, offering distinct benefits in terms of efficiency, air quality, power requirements, and application. Whether you need a compressor for a small workshop, large-scale industrial production, or even outdoor use, selecting the right type is critical to ensuring optimal performance and cost-efficiency. By understanding the differences between reciprocating, rotary screw, centrifugal, diaphragm, scroll, vane, and portable compressors, you can choose the best air compressor for your specific needs.
